Sku

FG-601E

Firewall

36 Gbps

IPS

10 Gbps

NGFW

9.5 Gbps

Threat Protection

7 Gbps

Interfaces

2 x 10GE SFP+ slots

8 x GE SFP slots

8 x GE RJ45 ports

2 x GE RJ45 management ports

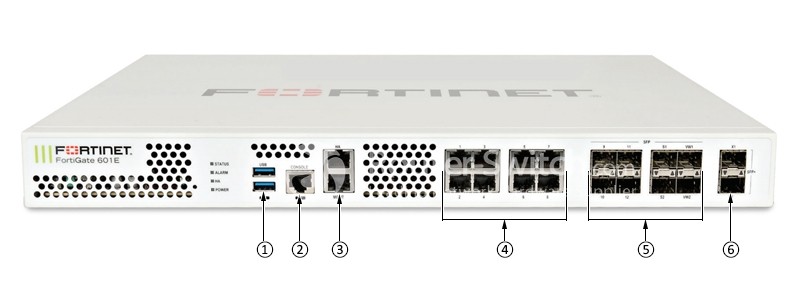

①

2 USB Ports

②

1 Console Port

③

2x GE RJ45 MGMT/HA Ports

④

8x GE SFP Slots

⑤

8x GE RJ45 Ports

⑥

2x 10 GE SFP+ Slots

Optional Accessories & Spares

SKU

Description

1 GE SFP LX Transceiver Module

FG-TRAN-LX

1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots

1 GE SFP RJ45 Transceiver Module

FG-TRAN-GC

1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots

1 GE SFP SX Transceiver Module

FG-TRAN-SX

1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots

10 GE SFP+ Transceiver Module, Short Range

FG-TRAN-SFP+SR

10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots

10 GE SFP+ Transceiver Module, Long Range

FG-TRAN-SFP+LR

10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots

10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft

SP-CABLE-ADASFP+

10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots

Optional Power Supply

SP-FG300E-PS

AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F

Types

Model

Description

Basic Firewall

FG-601E

2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard SSD storage

1 year bundle

FG-601E-BDL-950-12

FG-601E  Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-12)

1 year License

FC-10-F6H1E-950-02-12

1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E

3 year bundle

FG-601E-BDL-950-36

FG-601E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-36)

3 year License

FC-10-F6H1E-950-02-36

3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E

5 year bundle

FG-601E-BDL-950-60

FG-601E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-60)

5 year License

FC-10-F6H1E-950-02-60

5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E

Sku

FG-601E

FG-600E

Firewall

36 Gbps

36 Gbps

IPS

10 Gbps

10 Gbps

NGFW

9.5 Gbps

9.5 Gbps

Threat Protection

7 Gbps

7 Gbps

Interfaces

2 x 10GE SFP+ slots

8 x GE SFP slots

8 x GE RJ45 ports

2 x GE RJ45 management ports

2 x 10GE SFP+ slots

8 x GE SFP slots

8 x GE RJ45 ports

2 x GE RJ45 management ports

Local Storage

2x 240 GB SSD

NIL

FG-601E Specification

Type

FORTIGATE 601E

Interfaces and Modules

10 GE SFP+ Slots

2

GE SFP Slots

8

GE RJ45 Interfaces

8

GE RJ45 Management Ports

2

USB Ports

2

RJ45 Console Port

1

Local Storage

2x 240 GB SSD

Included Transceivers

2x SFP (SX 1 GE)

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

36 / 36 / 27 Gbps

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

36 / 36 / 27 Gbps

Firewall Latency (64 byte, UDP)

2 μs

Firewall Throughput (Packet per Second)

40.5 Mpps

Concurrent Sessions (TCP)

8 Million

New Sessions/Second (TCP)

450,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

7 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

10,000

SSL Inspection Throughput (IPS, avg. HTTPS)

8 Gbps

SSL Inspection CPS (IPS, avg. HTTPS)

5,500

Application Control Throughput (HTTP 64K)

15 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

64

Maximum Number of FortiAPs (Total / Tunnel)

1024 / 512

Maximum Number of FortiTokens

5,000

Maximum Number of Registered FortiClients

2,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

System Performance — Enterprise Traffic Mix

IPS Throughput

10 Gbps

NGFW Throughput

9.5 Gbps

Threat Protection Throughput

7 Gbps

Dimensions and Power

Height x Width x Length

1.75 x 17.0 x 15.0 inches

44.45 x 432 x 380 mm

Form Factor

1 RU

AC Power Supply

100–240V AC, 60–50 Hz

Power Consumption (Average / Maximum)

129 W / 244 W

Current (Maximum)

6A @ 100V

Heat Dissipation

832 BTU/h

Redundant Power Supplies

optional

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

59 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
